CCL(Copper Clad Laminate, 동박적층판)
5G / 6G Electrical 평가
Electrical 물성은 Dielectric Constant (Dk), Dissipation Factor (Df) 및 Signal Integrity (SI)를 측정합니다.

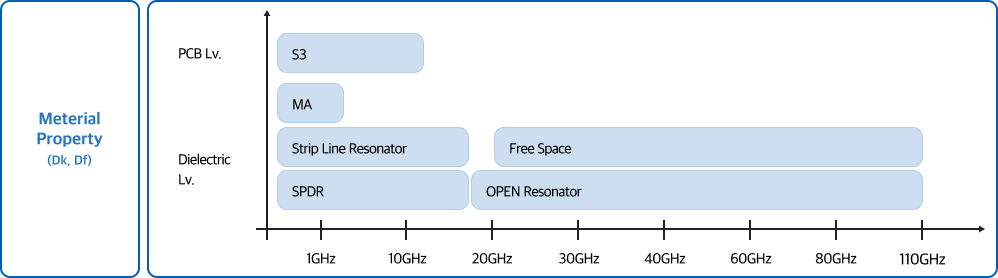

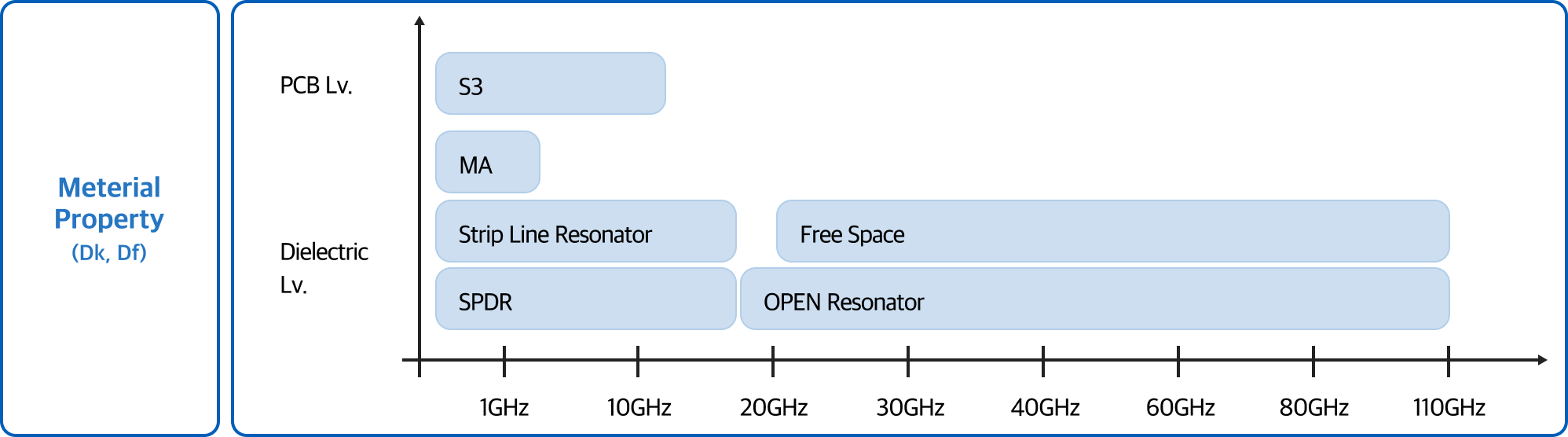

Material Property (Dk, Df)
| 측정 방법 | 측정 대역 | |
|---|---|---|
| Dielectric Lv. | Material Analyzer | 1 GHz |
| SPDR | 1 ~ 20 GHz | |
| Strip Line Resonator | 15 GHz | |
| Free Space | 20 ~ 110 GHz | |
| Open Resonator | 18 ~ 110 GHz | |
| PCB Lv. | S3 | 10 GHz |
| Ring Resonator | 20 ~ 110 GHz |

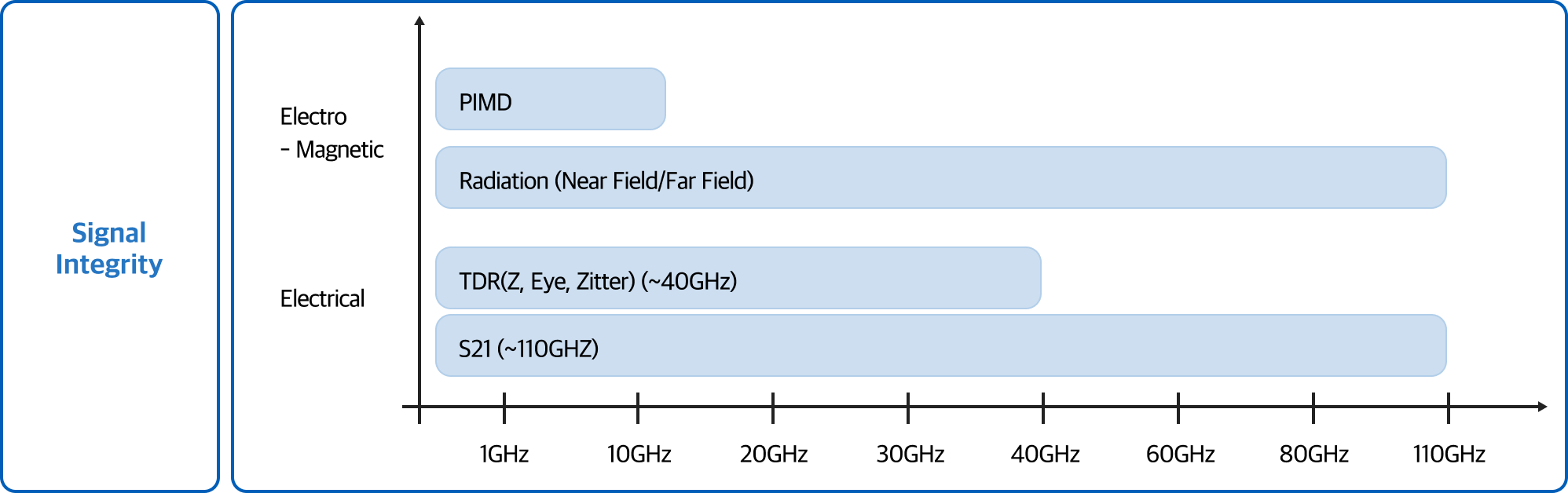

Signal Integrity
| 측정 방법 | 측정 대역 |
|---|---|
| PIMD | 2 GHz |
| Radiation | ~ 110 GHz |
| TDR | ~ 40 GHz |
| S21 | ~ 110 GHz |
